As-Built Services

Accurate and up-to-date as-built services are essential for the on going operation, maintenance, and safety of each plants & facilities. These services are essential for ensuring the safety, compliance, and efficient operation of oil and gas facilities and also to maintain Asset Information Management. This As built Information helps asset owners, operators, and all levels of engineers / supervisors/foremen to understand the current state of the plant for their documentation and records to represent the physical configuration of a Plant or facility. These includes:

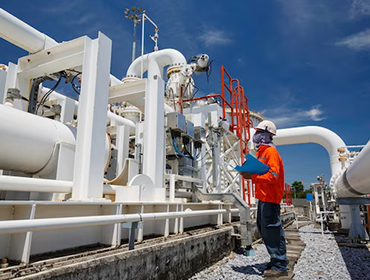

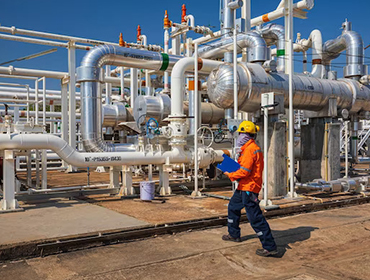

⦿ Creation of Engineering Documents and Drawings like P&ID, GAD & Isometrics & Structural etc by walk through in the plant

⦿ Preparation of the Red Line Mark-ups for the Drawings As Built Revisions purposes.

⦿ Preparation of the Bill of Materials for each disciplines for Engineering records or for the future purposes.

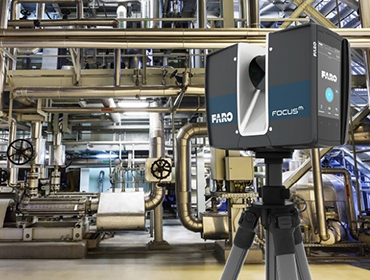

⦿ Laser Scanning of the Plants for 3D model creations.

⦿ Primitive modelling activities post laser scan data

⦿ Preparation of Asset management & maintenance.

⦿ We Create / Generate / Update / Computerized the Drawings by the CAD tools in 2D.

⦿ We Create / Generate / Update / Computerized the 3D Model by specialised CAD tools in 3D with Intelligent & Non Intelligent models.
